Ocean Led

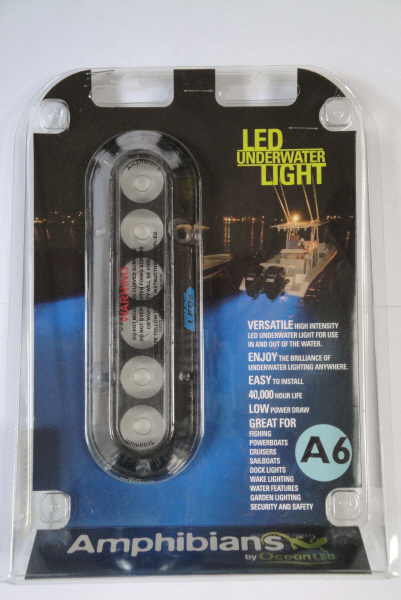

Amphibians Underwater LED's - Technical Specifications A6
Recommended for boats up to - 10 mtr - 33' LOA
Length of fixture - 155mm - 6 1/8" 182mm - 7 1/8" 155 mm - 6 1/8"
Width of fixture - 50 mm - 2"
Profile (Height) of fixture - 21.5 mm - 3/4"
Total Weight (not including packaging) 155 grms - 5.4 ounces
Cable Length 2m - standaard 2mtr - as 6 1/2'
Hole cut-out for cable entry - 9 mm - 3/8"
Lens Angles - TBA
Colors available - White, Blue Ultra LEDs
Material Chemically resistant optical polymerLens - Tritonium Optical Lens
LED Life - 40,000+ hours
Total LUX level @ 39" / 1 metre TBA
Current @ 12 vDC - 0.5 amps
Current @ 24 vDC - 0.3 amps
